Brand Name : Die Casting Man/OEM
Model Number : UB-02-50
Certification : CE,ROHS, ENC,CB
Place of Origin : China
MOQ : 10pcs
Price : Negotiation
Payment Terms : By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability : 10000PCS/Month.
Delivery Time : 7-30 days base on order quantity
Packaging Details : color box or white box
Input Voltage : AC85 - 265V
Frequency Range : 50 - 60Hz
Working Ambient Humidity : 10% - 90%
Working Ambient Temperature : -30℃ - 50℃
Color : Black, White and Grey
gurantee : 5-7 years

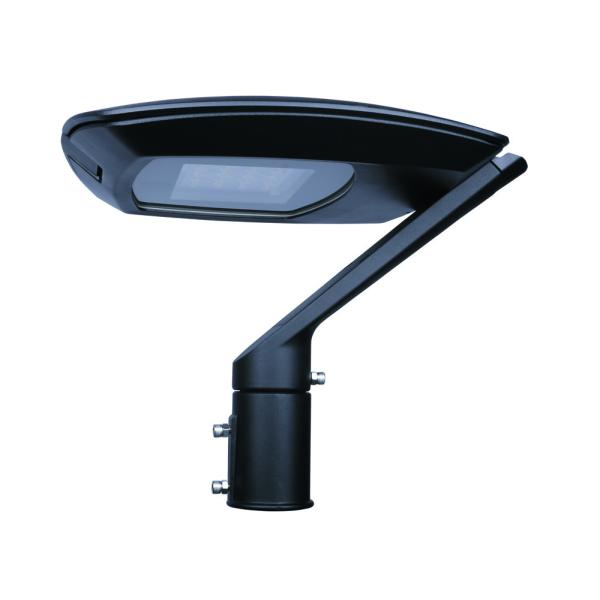

LED Street Light
UB-02-50
Installing Ways:
Both Horizontal and Vertical available and
adjustable angle -30 °to 30 °
Material:
Die casting body
Ultra clear tempered glass and PC lens
Product Description:
| Product Code | ZHUB-02-50 | ZHUB-02-120 |
| Input Wattage | 80W | 150W |
| Color Temperature | 3000-6500 | 3000-6500 |
| Luminous Flux | 8800-10000lm | 17250-18750lm |
| Input Voltage | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 |
| color rendering index | Ra≥70 | Ra≥70 |
| Temperature of Working Condition | -40--50℃ | -40--50℃ |
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h |
| Protectin Grade | IP66 | IP66 |
| Installation Pipe Diameter | φ60mm | φ60mm |
| Installation Height | 3-6m | 5-8m |
| Net Weight | 9.5kg | 13.0kg |
| Gross Weight | 10.0kg | 14.0kg |
| Packing Size | 490*590*155mm | 570*700*165mm |
Product Dimension:
| Code | ZHSL12A-50 | ZHSL12A-120 |
| L (mm) | 603 | 711 |
| W(mm) | 416 | 522 |
| H (mm) | 132 | 132 |

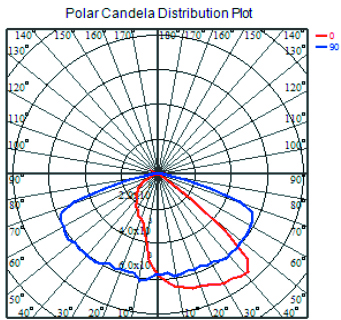

Optics:








|
|
150W 6500k 50000h Outdoor Led Garden Lights Images |
